Solar ACDB (AC distribution Box) is an important part of SPV system. It gives extra protection to the system
in case of failures on load side.ACDB is made up of breaker, isolators, voltage and current monitoring etc.
To ensure maximum protection to the sophisticated electronic equipment, it has provision for surge
protection in the box along with fuses. Also ACDB have energy meter which help you to know how much energy
you are using or withdrawing from the solar energy.

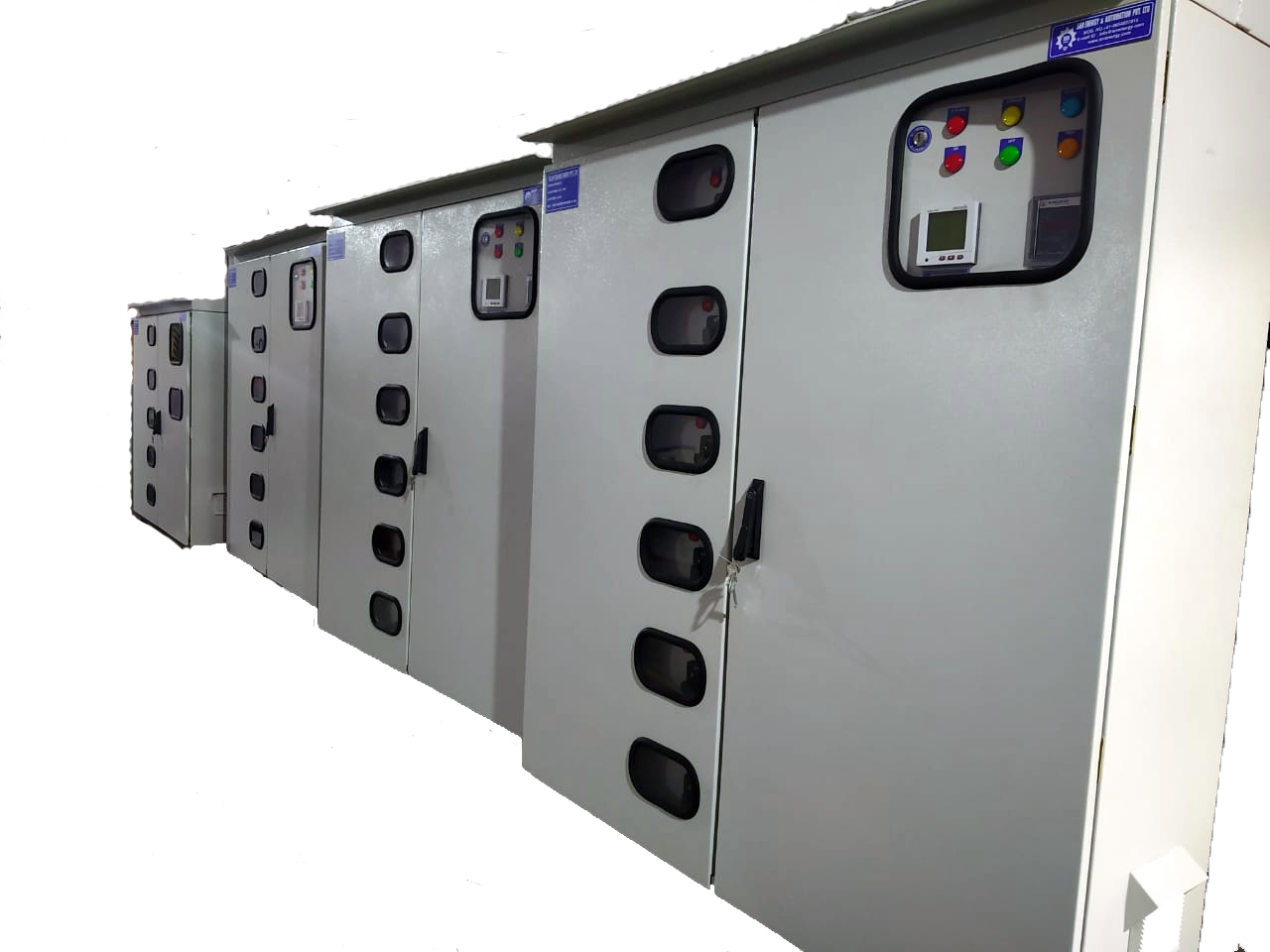

ACDB box is made of epoxy powder coated metal casting & Polycarbonate IP 65/66. The ACDB receives the AC
power from the solar inverter and directs it to AC loads through the distribution board. One Digital Energy
Material Surge Protection Device is provided in ACDB to measure the consumption of power from SPV Power
Plant.
Features of ACDB:-
- Ambient temperature -10 to 60 Degree
- Ingress protection: IP 65 /IP54 Rated
- Protection: Over current and fault protection
- Cable gland: Nylon/Metal/Brass glands
- Body Color- RAL7035/RAL7032
- Surge Protection: AC SPD Type 2 40KA, Type 1+2 40KA
- AC Switching: MCCB/MCB/ACB /AC ISOALTOR Based AC Disconnection.
- Metering section: (Class 1, 0.5, 0.5s, 0.2)
- AC rated Voltage: AC240V/415Volts/480Volts/600volts/800volts
- Mounting arrangement: Wall & floor mounting indoor/outdoor
- Enclosure Material: Polycarbonate/FRP/ABS/ metal enclosure Rain / Dust Protecting Canopy
- Material: CRCA / SS
Types of ACDB
- ACDB 1 IN 1 OUT UP 100KW with/without canopy
- ACDB 2 IN 1 OUT, IP65 & IP54 with/without Canopy
- ACDB 3 IN 1 OUT, IP65 & IP54 with/without Canopy
- ACDB 4 IN 1OUT, IP65 & IP54 with/without Canopy
- ACDB 5 IN 1 OUT, IP65 & IP54 with/without Canopy
- ACDB 6 IN 1 OUT, IP65 & IP54 with/without Canopy
- ACDB 7 IN 1 OUT, IP65 & IP54 with/without Canopy
